ImGUI with ImageWidget

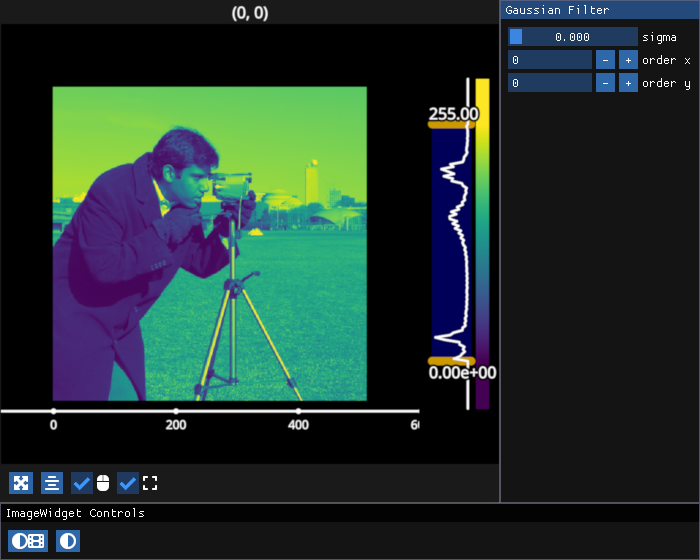

Example showing how to write a custom GUI with imgui and use it with ImageWidget

/home/runner/work/fastplotlib/fastplotlib/fastplotlib/graphics/features/_base.py:18: UserWarning: casting float64 array to float32
  warn(f"casting {array.dtype} array to float32")

# test_example = true

# some simple image processing functions
from scipy.ndimage import gaussian_filter
import imageio.v3 as iio

import fastplotlib as fpl

# subclass from EdgeWindow to make a custom ImGUI Window to place inside the figure!
from fastplotlib.ui import EdgeWindow
from imgui_bundle import imgui

a = iio.imread("imageio:camera.png")
iw = fpl.ImageWidget(data=a, cmap="viridis", figure_kwargs={"size": (700, 560)})
iw.show()


# GUI for some basic image processing
class ImageProcessingWindow(EdgeWindow):
    def __init__(self, figure, size, location, title):
        super().__init__(figure=figure, size=size, location=location, title=title)

        self.sigma = 0.0
        self.order_x, self.order_y = 0, 0

    def update(self):
        # implement the GUI within the update function
        # you do not need to call imgui.new_frame(), this is handled by Figure

        # window creation is handled by the base EdgeWindow.draw_window()
        # if you want to customize the imgui window, you can override EdgeWindow.draw_window()

        something_changed = False

        # slider for gaussian filter sigma value
        changed, value = imgui.slider_float(label="sigma", v=self.sigma, v_min=0.0, v_max=20.0)
        if changed:
            self.sigma = value
            something_changed = True

        # int entries for gaussian filter order
        for axis in ["x", "y"]:
            changed, value = imgui.input_int(f"order {axis}", v=getattr(self, f"order_{axis}"))
            if changed:
                if value < 0:
                    value = 0
                setattr(self, f"order_{axis}", value)
                something_changed = True

        if something_changed:
            self.process_image()

        # imgui.end() is handled by EdgeWindow.draw_window()

        # do not call imgui.end_frame(), this is handled by Figure

    def process_image(self):
        processed = gaussian_filter(a, sigma=self.sigma, order=(self.order_y, self.order_x))
        iw.set_data(processed)


gui = ImageProcessingWindow(iw.figure, size=200, location="right", title="Gaussian Filter")


iw.figure.add_gui(gui)

figure = iw.figure


# NOTE: `if __name__ == "__main__"` is NOT how to use fastplotlib interactively
# please see our docs for using fastplotlib interactively in ipython and jupyter
if __name__ == "__main__":
    print(__doc__)
    fpl.loop.run()
