Key Events

Move an image around using and change some of its properties using keyboard events.

• Use the arrows keys to move the image by changing its offset

• Press “v”, “g”, “p” to change the colormaps (viridis, grey, plasma).

• Press “r” to rotate the image +18 degrees (pi / 10 radians)

• Press “Shift + R” to rotate the image -18 degrees

• Axis of rotation is the origin

• Press “-”, “=” to decrease/increase the vmin

• Press “_”, “+” to decrease/increase the vmax

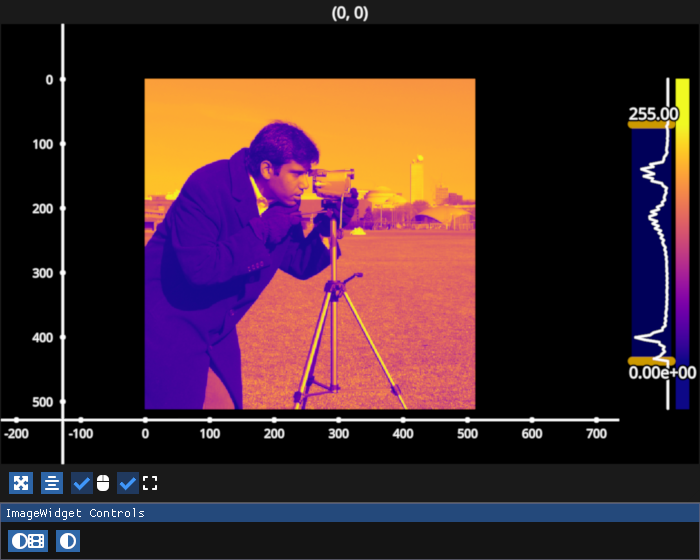

We use the ImageWidget here because the histogram LUT tool makes it easy to see the changes in vmin and vmax.

/home/runner/work/fastplotlib/fastplotlib/fastplotlib/graphics/features/_base.py:18: UserWarning: casting float64 array to float32
  warn(f"casting {array.dtype} array to float32")

# test_example = false

import numpy as np
import fastplotlib as fpl
import pygfx
import imageio.v3 as iio

data = iio.imread("imageio:camera.png")

iw = fpl.ImageWidget(data, figure_kwargs={"size": (700, 560)})

image = iw.managed_graphics[0]


@iw.figure.renderer.add_event_handler("key_down")
def handle_event(ev: pygfx.KeyboardEvent):
    match ev.key:
        # change the cmap
        case "v":
            image.cmap = "viridis"
        case "g":
            image.cmap = "grey"
        case "p":
            image.cmap = "plasma"

        # keys to change vmin/vmax
        case "-":
            image.vmin -= 1
        case "=":
            image.vmin += 1
        case "_":
            image.vmax -= 1
        case "+":
            image.vmax += 1

        # rotate
        case "r":
            image.rotate(np.pi / 10, axis="z")
        case "R":
            image.rotate(-np.pi / 10, axis="z")

        # arrow key events to move the image
        case "ArrowUp":
            image.offset = image.offset + [0, -10, 0]  # remember y-axis is flipped for images
        case "ArrowDown":
            image.offset = image.offset + [0, 10, 0]
        case "ArrowLeft":
            image.offset = image.offset + [-10, 0, 0]
        case "ArrowRight":
            image.offset = image.offset + [10, 0, 0]


iw.show()


figure = iw.figure  # ignore, this is just so the docs gallery scraper picks up the figure


# NOTE: `if __name__ == "__main__"` is NOT how to use fastplotlib interactively
# please see our docs for using fastplotlib interactively in ipython and jupyter
if __name__ == "__main__":
    print(__doc__)
    fpl.loop.run()
