NDWidget image

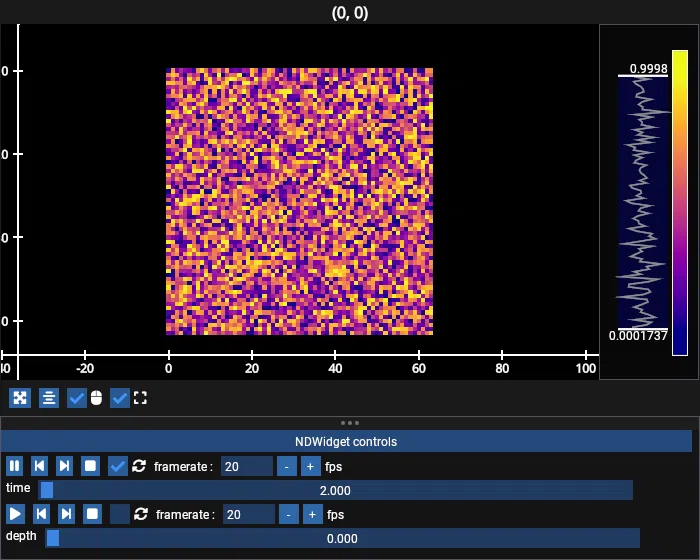

NDWidget image example

/home/runner/work/fastplotlib/fastplotlib/fastplotlib/graphics/features/_image.py:205: UserWarning: casting float64 array to float32
  warn(f"casting {data.dtype} array to float32")

# test_example = true

import numpy as np
import fastplotlib as fpl


data = np.random.rand(1000, 30, 64, 64)
data2 = np.random.rand(1000, 30, 128, 128)

# must define a reference range for each dim
ref = {
    "time": (0, 1000, 1),
    "depth": (0, 30, 1),
}


ndw = fpl.NDWidget(
    ranges=ref,
    size=(700, 560)
)
ndw2 = fpl.NDWidget(
    ranges=ref,
    indices=ndw.indices, # can create another NDWidget that shared the reference index! So multiple windows are possible
    size=(700, 560)
)

ndi = ndw[0, 0].add_nd_image(
    data,
    ("time", "depth", "m", "n"),  # specify all dim names
    ("m", "n"),  # specify spatial dims IN ORDER, rest are auto slider dims
    name="4d-image",
)

ndi2 = ndw2[0, 0].add_nd_image(
    data2,
    ("time", "depth", "m", "n"),  # specify all dim names
    ("m", "n"),  # specify spatial dims IN ORDER, rest are auto slider dims
    name="4d-image",
)

# change spatial dims on the fly
# ndi.spatial_dims = ("depth", "m", "n")

figure = ndw.figure


ndw.show()
ndw2.show()

# NOTE: fpl.loop.run() should not be used for interactive sessions
# See the "JupyterLab and IPython" section in the user guide
if __name__ == "__main__":
    print(__doc__)
    fpl.loop.run()
